Features:

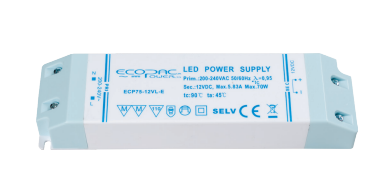

• Low Profile Constant Voltage Driver
• AC input: 200-240VAC
• Built in PFC Function, Flicker Free
• Efficiency up to 85%
• Protections: short circuit/ over loading/
over current/ over temperature
• Full protection plastic housing easy installation
• Cooling by free air convection
• Suitable for profile lighting and lightboxes
Models AV-75-24
Output Specifications
Output Voltage 24V
Voltage Tolerance 150mV
Output Current 3.125A
Rated Power 75W
Input Specifications
Input Voltage 200-240VAC
Frequency Range 50-60Hz
Inrush Current <75A
Full Load Efficiency (Typ.) 85%
AC Current (Max.) 0.22A
Power Factor PF >0.9/240VAC (Full Loading)
Protection
Short Circuit Shut down o/p voltage, re-power onto recover after fault condition is removed
Over Loading <120%, Shut down o/p voltage, re-power onto recover
Over Temperature 115°C shut down o/p voltage, re-power onto recover
Protection Class II
Environment
Working Temperature -20~+45°C (Refer to derating curve), +85°C (max case temp.)
Working Humidity 45 -85%
Safety & EMC
Safety standards EN613471, EN61347-2-13
EMF EN62493-2010
ERP EN1194-2012
EMS EN61000-3-2; EN61000-3-3; EN61547
Other specifications
Weight 0.24 Kg
Size 170 x 44.5 x 28.2 mm
Packing 235 x 175 x 165 mm (25PCS/CTN)
IP Rating IP20
