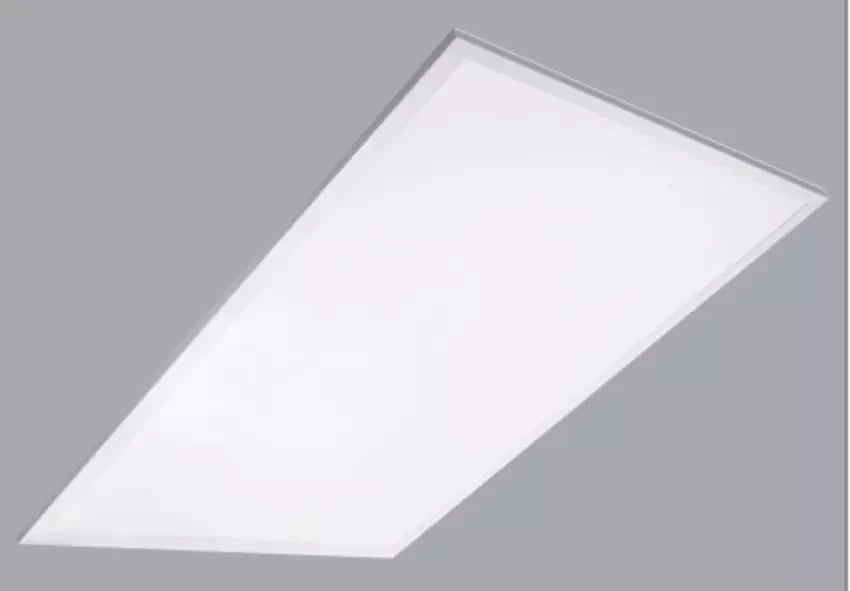

OVIA 30W Inceptor® Slate Backlit LED Panel - 6K
Tax included.
The Inceptor® Slate, TP(a) Rated Backlit Panel Light.
Ovia provides an extensive range of panel lighting and downlights for your commercial environment. They come with a range of multiple features and benefits, some including different colour temperature options.
General Information

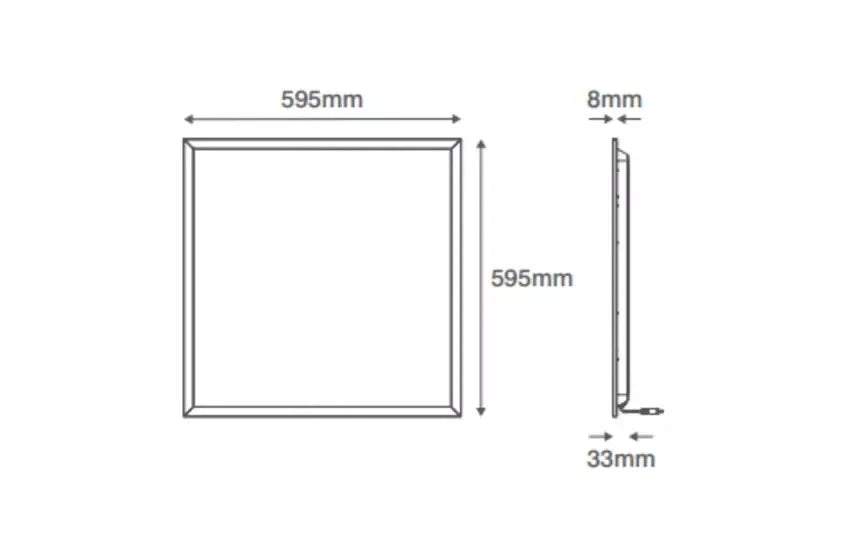

Dimensions (mm) 595 (L) x 595 (W) x 33 (D)
Materials Frame: Powdercoated Aluminium.
Diffuser: Polystyrene.
Back Cover: Powdercoated Steel.
Finish: White (RAL 9003)
Product Weight: (Kg) 1.8
Ingress Protection: IP20
Impact Rating (IK): 06
Flammability Rating: TP(a)
Warranty 5 years
Supply & Power Information
Input Voltage & Frequency (V~ / Hz) 200-240 50
Safety Class II
Circuit Wattage (W) 30
Input Current (mA) 125
Inrush Current/Time ?40A (350uS@220V~)
Power Factor >0.9
Operating Temperature (°C) -25 to +45
Critical Temperature (°C) +90
Driver Information: Remote Driver Supplied
Prewired Flow™ Connector: 3 Pole CT105-F Push-fit Terminals
Luminaire Output
Colour Temperature (K) 6000
Colour Render Index (CRI) >80
Typical Luminous Flux (lm) 3200
Efficacy (lm/W) 107

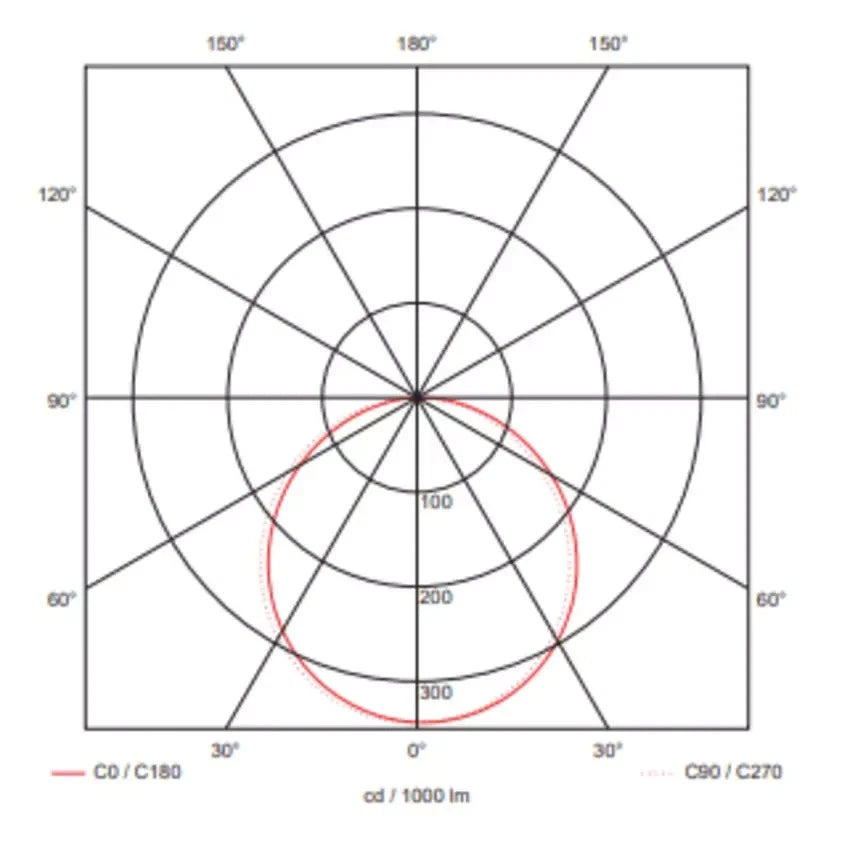

Beam Angle (°) 120
LED Lifetime (L70) (Hours) 50,000
Non-dimmable
Additional Information
Suspension hooks pre-fitted to the back
Compatible Accessories
OVCGMF0001 - 240V~ 29-48W Multi-function Dimmable Constant Current LED Driver (36W Setting)
OVSUSP731 - Suspension Wire Kit
OVREC731 - 600mm x 600mm Recess Frame Kit
OVSURF734 - 600mm x 600mm Surface Frame Kit
OVEMCG50 - 3 Hour Emergency Pack
OVEMCG50ST - 3 Hour Self-Test Emergency Pack
